¶ Section Definition (Intersections | Sections | New/Edit/Delete)

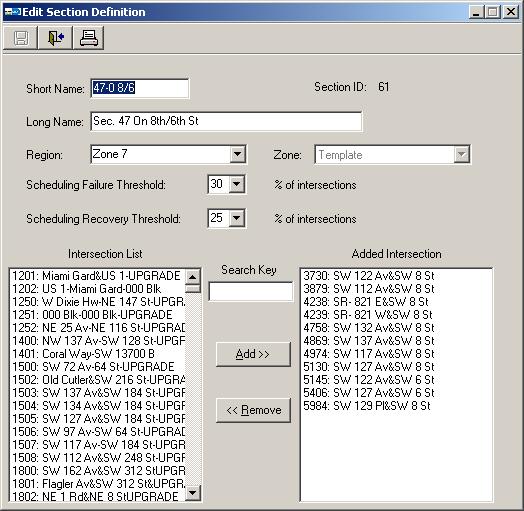

Use the Section Definition form to input a new section or view/edit existing section data.
| Parameter | Description |
| Short Name | is the abbreviated section name (up to 8 characters) used to identify sections throughout KITS. |
| Section ID | is the read-only identification number assigned to the current section by KITS. |
| Long Name | is the descriptive section name (up to 30 characters). |
| Region | allows the user to assign the section to a pre-defined region from the drop-down list. To add a section to a new region, the region must first be defined on the Region form. |
| Zone | allows the user to assign the section to a zone (engineering) |
| Scheduling Failure Threshold |
defines the percentage (between 1 and 100) of non-responding intersections that will cause a section’s scheduled plan to be overridden by standby. Default = 30 percent |
| Scheduling Recovery Threshold |
defines the percentage (between 1 and 100) of non-responding intersections that will cause a section’s scheduled plan to stop being overridden by standby. Default = 25 percent |
¶ Adding Intersections to a Section
To add an intersection, highlight the intersection name in the Intersection List box and click Add, or double-click on the intersection name in the Intersection List box.
The intersection will be transferred to the Added Intersection box while remaining in the Intersection List box. Hold down the CTRL or SHIFT keys while selecting from the list to highlight multiple intersections. Click Add and the selected intersections will be added.
To filter the Intersection List, enter up to the first 4 characters of the intersections you are looking for in the search key. The list will automatically update based on each character input, and display intersection names where either cross street matches the search key input.
¶ Removing Intersections from a Section
To remove an intersection, highlight the intersection name in the Added Intersection box and click Remove, or double-click on the intersection name in the Added Intersection box. The intersection will be removed from the Added Intersection box. Hold down the CTRL or SHIFT keys while selecting from the list to highlight multiple intersections. Click Remove and the selected intersections will be removed.
¶ Viewing and Editing Time-of-Day Intersection Assignments
To view or edit the time-of-day intersection assignments, highlight an intersection in the Added Intersection box and click TOD Assignments. KITS displays the Intersection Reassignment form (shown below) from which you can view and edit the intersection’s time-of-day section assignments.
This feature is currently unavailable in KITS .
¶ Printing a section definition

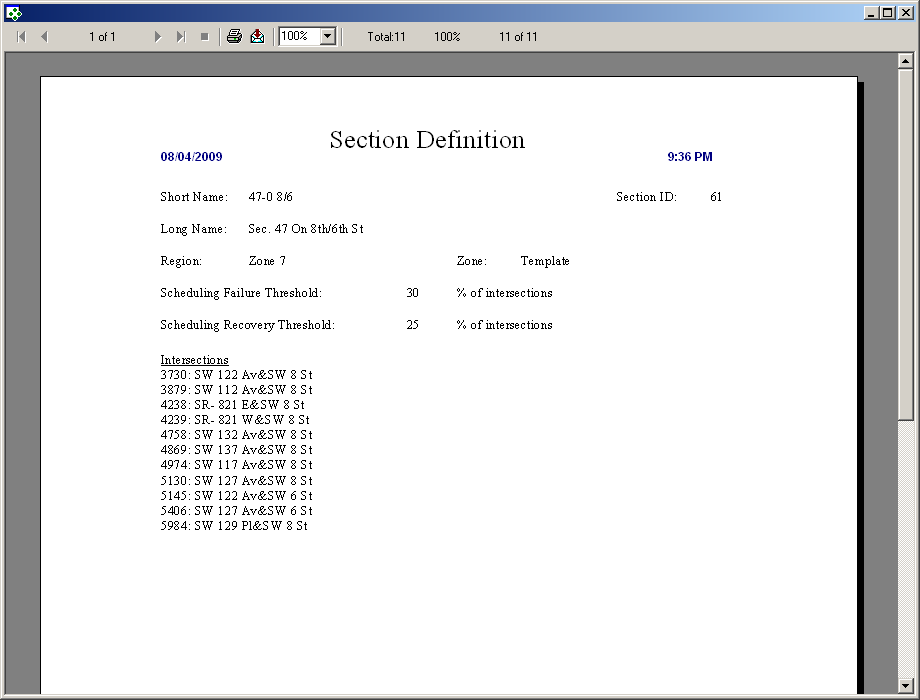

Pressing the printer button at the top of the form will print the section data as shown below.
