¶ TSP Overview (Intersections | TSP)
The TSP Overview form found within the Intersections tab provides two main views including Statistics and Travel Time pages.
¶ Toolbox

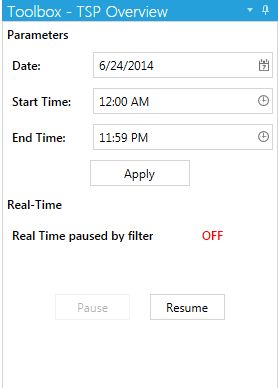

Upon opening the form, the associated toolbox becomes visible. First select the desired date and time and choose whether or not to pause the Real-Time filter, then press Apply.
.png)
¶ Statistics

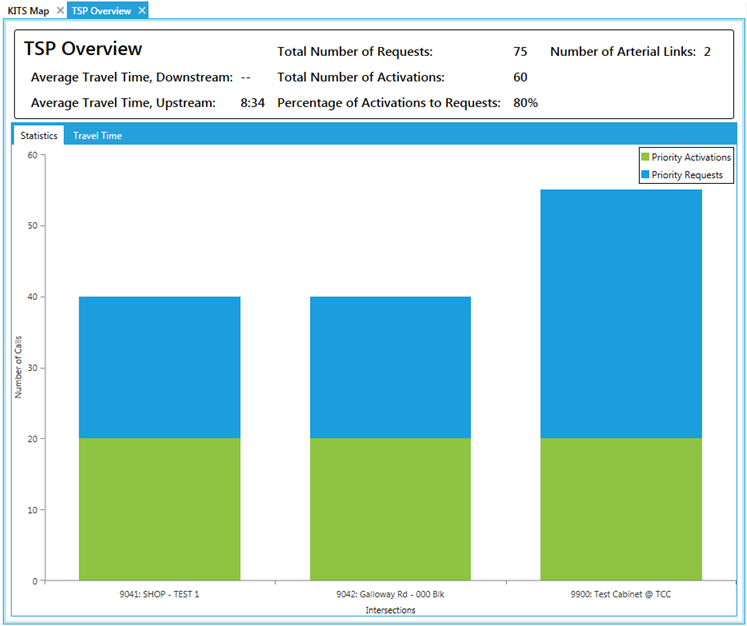

This view shows both Priority Activations and Requests for the selected intersections within the provided date and times. Additional information is shown in the top Summary portion of the form.
.png)
¶ Travel Time

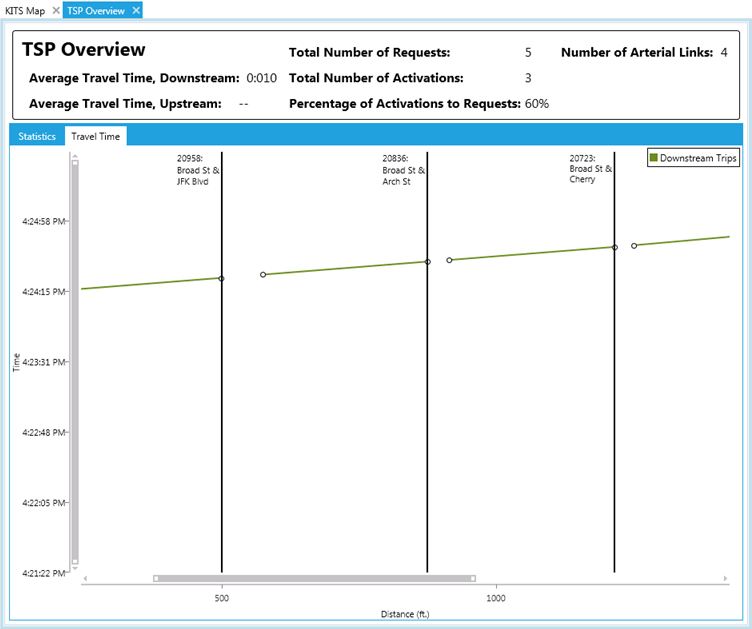

Selecting the Travel Time form provides a graph showing each intersection with associated Upstream and Downstream Trips. Each vertical line represents an intersection with its description near the top. The diagonal lines represent the vehicle being detected and its approach to each intersection. This form also displays a Summary section in the top portion of the form displaying additional information.
.png)
¶ Priority Phases Usage Report (Intersections | TSP)
This form is found within the Intersections tab and provides a detailed Usage Report for Priority Phase vehicle check-ins.
¶ Range

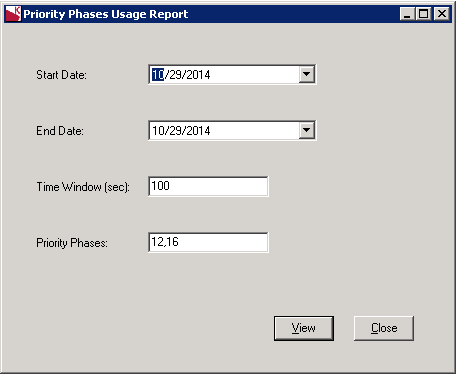

First select the desired date and time ranges and specify the phases that are used for green extensions. Then select View.
.png)
¶ Usage Report

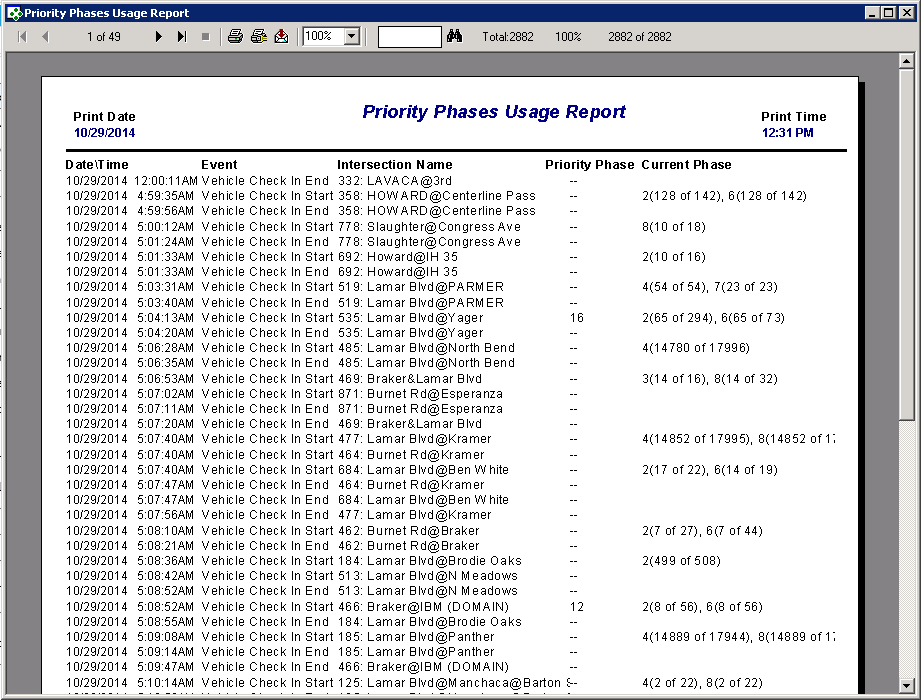

The report is then generated based on the users selections as shown below. The events are ordered by the Date/Time showing the Intersection Name, Priority Phase and Current Phase. The Current Phase column shows the phase(s) that were green when the vehicle check-in event occurred as well as how many seconds the light had been green for.
Additionally a user may print or export this report into a file type of their choice.
.png)
