¶ D4 I/O Status
The I/O Status display shows real-time input/output information for D4_NTCIP controllers. This tool is especially useful for seeing real-time detector actuations by phase in comparison with the current phase information for all pin outputs. This display also shows any alarm conditions at the bottom of the display.
Similar information regarding phase information can be found in Timing Values, but this display provides a more detailed look at detectors and other input information.

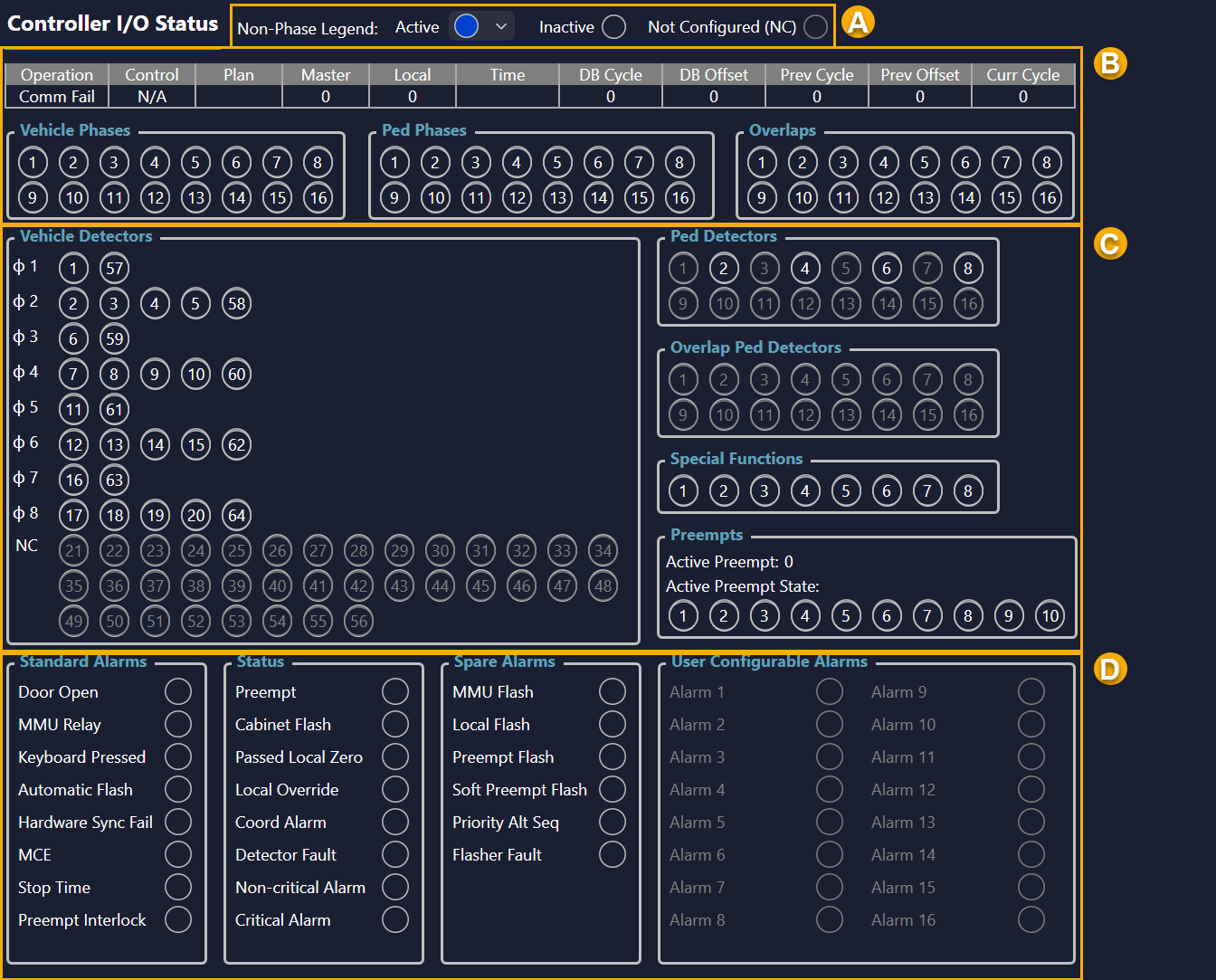

¶ Elements of D4 I/O Status
A. This section shows real-time, second-by-second output information by phase including Vehicle Phases, Ped Phases, Overlaps, and current signal status.
B. This section shows real-time, second-by-second detector, special function, and Preempt input grouped by phase assignments.
C. This section shows all alarm conditions, grouping them by type.
D. This is a legend showing what inputs and alarms are Active, Inactive, or Not Configured (NC) for sections B and C. In this section, the Active color can be changed by clicking the dropdown indicated by the arrow.

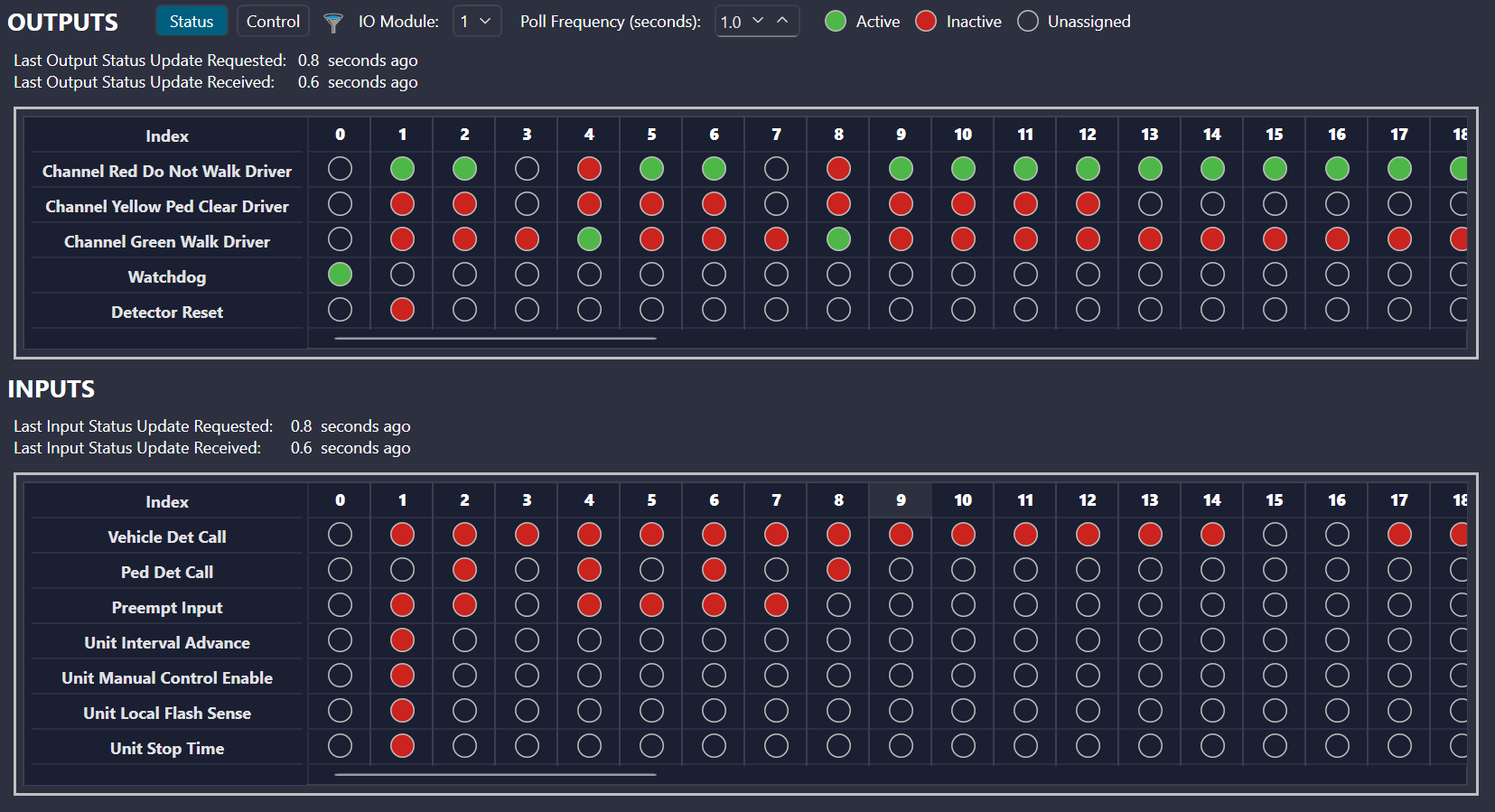

¶ MaxTime I/O Status
